Finding a reliable High Strength Aluminum Honeycomb Core Supplier is the first step for any project that requires a balance between low weight and extreme durability. Aluminum honeycomb is a unique material. It uses a hexagonal structure to provide incredible rigidity. Whether you are building a commercial aircraft or a modern skyscraper, the quality of the core material determines the success of your project.
Technical Specifications and Materials
The strength of a honeycomb core comes from its geometry and the quality of the aluminum alloy used. As a leading High Strength Aluminum Honeycomb Core Supplier, we focus on two primary alloys.
Common Aluminum Alloys Used
| Alloy Type | Main Characteristics | Best Use Case |
|---|---|---|
| Alloy 3003 | Good strength, high corrosion resistance, cost-effective. | Commercial buildings, furniture, and general industrial use. |
| Alloy 5052 | Very high strength, excellent in marine environments, lightweight. | Aerospace, high-performance marine vessels, and racing cars. |
Temper and Hardness
The “temper” refers to the hardness of the aluminum foil. Most high-strength cores use the H19 or H18 state. These are work-hardened tempers. They ensure that the cell walls do not deform easily under pressure. This is vital when the core is being bonded to skins to create a sandwich panel.
Digital Specification Overview
| Feature | Available Range (Imperial) | Available Range (Metric) |
|---|---|---|
| Cell Size | $$1/16$$ inch to $$1$$ inch | $$1.6$$ mm to $$25$$ mm |
| Foil Thickness | $$0.001$$ inch to $$0.006$$ inch | $$0.03$$ mm to $$0.15$$ mm |
| Density | $$1.0$$ to $$12.0$$ lb/ft³ | $$16$$ to $$192$$ kg/m³ |
| Standard Length | Up to $$120$$ inches | Up to $$3000$$ mm |
| Standard Width | Up to $$60$$ inches | Up to $$1500$$ mm |
Different Product Types Offered
A professional High Strength Aluminum Honeycomb Core Supplier provides various product formats to meet different manufacturing needs.
1. Unexpanded Honeycomb Blocks (Nodepack)
This is the “sliced” version of the core before it is pulled into a hexagonal shape. It looks like a solid block of aluminum.
- Benefit: It is much cheaper to ship because it takes up very little space.
- Usage: Manufacturers with expansion tables prefer this format.

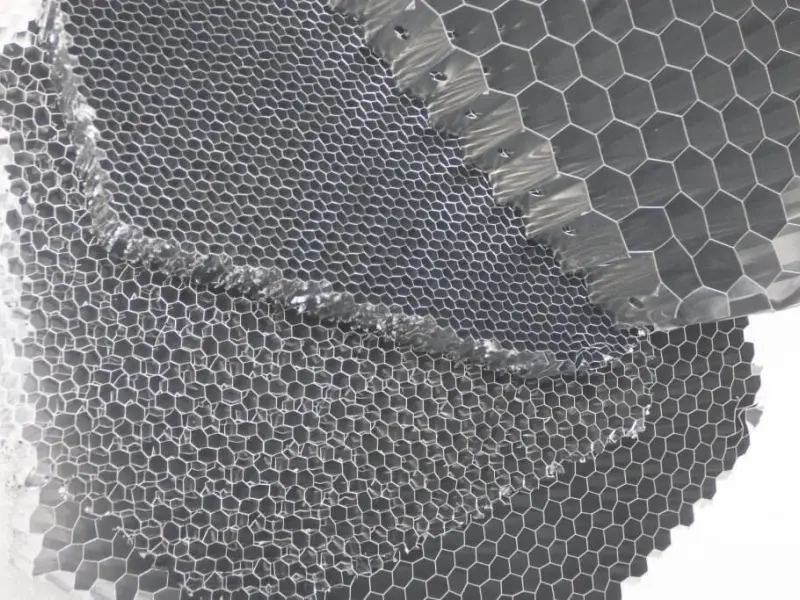

2. Expanded Honeycomb Sheets
These are sheets that have already been stretched into the final hexagonal shape.
- Benefit: They are ready to use immediately for bonding.
- Usage: Small to medium workshops or projects that require quick assembly.
3. Perforated Honeycomb Core
Standard honeycomb cells are airtight. In a perforated core, the foil has tiny pinholes.
- Benefit: This allows air to flow between cells. It prevents air bubbles or “skin bloating” during high-temperature bonding in an autoclave.
- Usage: Aerospace and high-end carbon fiber parts.
4. Micro-Cell Honeycomb
These cores have extremely small cell sizes (usually less than $$1/8$$ inch).
- Benefit: They provide a very high surface area for bonding thin skins.
- Usage: Electronics, laser equipment, and specialized air filters.
In-Depth Applications of High Strength Honeycomb
High-strength aluminum honeycomb is no longer just for the military. Its applications are found in almost every modern industry today.
1. Aerospace and Aviation
The aerospace industry was the first to use this material. Every pound saved in weight is a pound of fuel saved.
- Interior Panels: Used for cabin walls, floors, and overhead bins.
- Control Surfaces: Used in wing flaps and tail sections to maintain shape under wind pressure.
- Engine Components: Perforated cores are used for sound dampening in jet engines.
2. Marine and Shipbuilding
In the ocean, weight distribution is key to stability and speed. High Strength Aluminum Honeycomb Core Supplier products are essential for high-performance boats.
- Hulls and Decks: Providing stiff surfaces that do not rot like wood.
- Bulkheads: Interior walls that divide the ship while keeping the total weight low.
- Furniture: Tables and cabinets on luxury yachts made from honeycomb core with wood veneers.
3. Modern Architecture and Construction
Architects love honeycomb because it allows for perfectly flat, large-scale surfaces.
- Curtain Walls: Exterior building panels that can be very large without sagging.
- Cleanrooms: Used in hospitals and microchip factories because it is non-toxic and does not hold dust.
- Ceiling Systems: Large, decorative ceiling tiles that are easy to install and remove.
- Elevators: Reducing the weight of the elevator car allows for smaller motors and less energy use.
4. Transportation and Rail
High-speed trains and buses use honeycomb to improve safety and efficiency.
- Energy Absorbers: Honeycomb is designed to crush at a predictable rate. This is used in the “nose” of trains to absorb energy during a crash.
- Flooring: Durable, lightweight floors for subway cars and transit buses.
5. Industrial and Research Equipment
- Laser Cutting Tables: The honeycomb structure supports the metal being cut while letting the laser beam pass through the open cells.
- Air Flow Straighteners: Used in wind tunnels or large HVAC vents to remove turbulence from the air.
- Optical Tables: Providing a vibration-free surface for high-precision laboratory work.
Why Choose a Specialized High Strength Supplier?
Not all aluminum honeycomb is created equal. When you work with a specialized High Strength Aluminum Honeycomb Core Supplier, you get several advantages:
Precision Cutting
We use high-speed saws and CNC technology to ensure that the height (thickness) of the core is perfectly uniform. Even a difference of $$0.005$$ inches can cause bonding failures.
Superior Bonding Chemistry
The glue lines (nodes) that hold the aluminum foils together are the weakest point of a standard core. High-strength suppliers use specialized epoxy resins that can withstand high temperatures and chemical exposure.
Quality Certification
We provide full material traceability. This includes:
- Alloy certification (e.g., $$5052-H19$$).
- Density testing reports.
- Compressive strength data.
How to Calculate Your Requirements
When ordering from a High Strength Aluminum Honeycomb Core Supplier, you need to provide specific data points. Use this checklist to plan your order:
- Alloy Selection: Do you need $$3003$$ (Standard) or $$5052$$ (High Strength)?
- Cell Size: Smaller cells ($$1/4$$ inch or less) provide more strength but add weight.
- Foil Thickness: Thicker foils increase the crush strength.
- Final Thickness: This is the height of the core (e.g., $$0.5$$ inches).
- Format: Do you want expanded sheets or unexpanded blocks?
Performance Reference Table
| Cell Size (in) | Foil Thickness (in) | Compressive Strength (psi) | Weight (lb/ft³) |
|---|---|---|---|
| $$1/8$$ | $$0.002$$ | $$1150$$ | $$8.1$$ |
| $$3/16$$ | $$0.002$$ | $$650$$ | $$5.7$$ |
| $$1/4$$ | $$0.002$$ | $$450$$ | $$4.3$$ |
| $$3/8$$ | $$0.003$$ | $$420$$ | $$4.4$$ |
Working with Aluminum Honeycomb Core
As your High Strength Aluminum Honeycomb Core Supplier, we want to ensure your final product is perfect. Here are some tips for handling the material:
Proper Storage
Keep the core in its original packaging until you are ready to bond it. Aluminum foil is thin and can be dented easily. Store it in a dry environment to prevent any surface oxidation.
Choosing the Right Adhesive

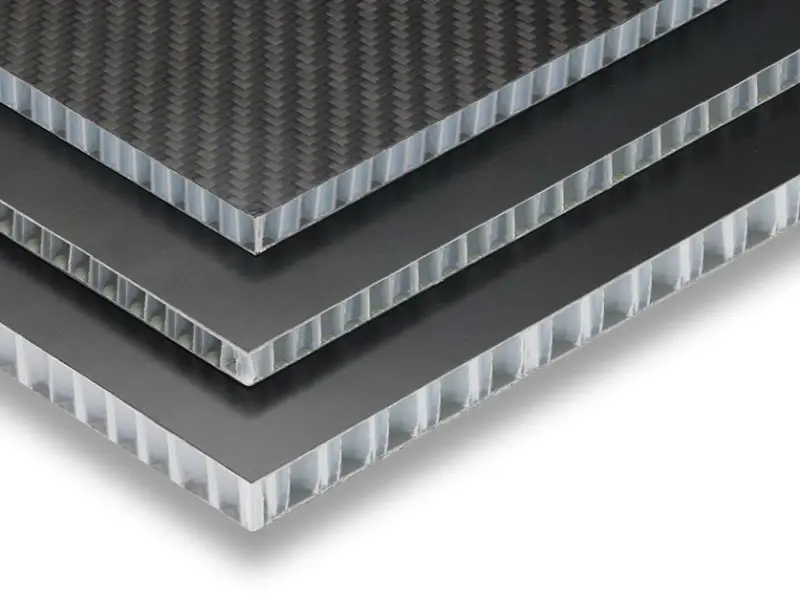

For high-strength applications, we recommend two-part epoxy adhesives. These provide the strongest bond between the honeycomb cell edges and the outer skins (aluminum, fiberglass, or carbon fiber).
Edge Filling
If your panel will have exposed edges, you can use “edge fillers.” These are lightweight potting compounds that seal the open cells and allow you to install screws or fasteners.
Frequently Asked Questions

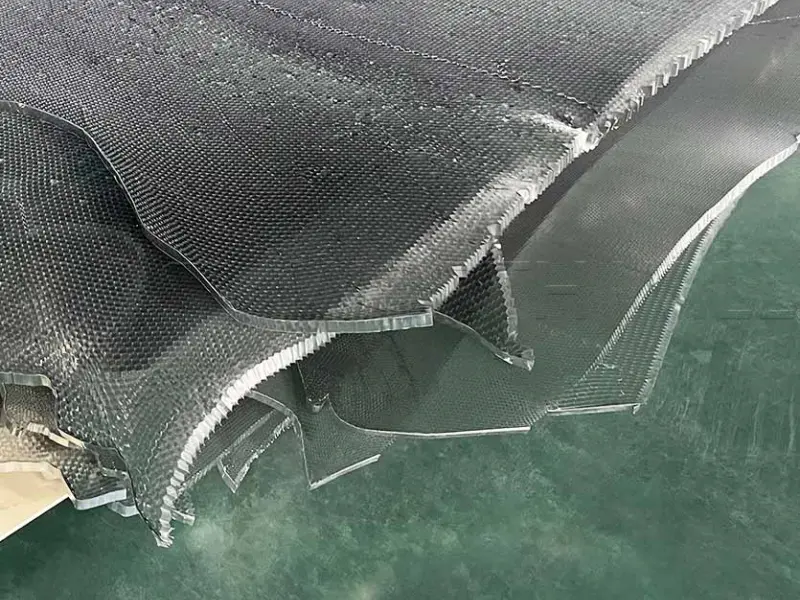

Can the core be curved?
Yes. Aluminum honeycomb is flexible in certain directions. For tight curves, we can provide a special “flexible” honeycomb geometry.
Is it fireproof?
Aluminum is a non-combustible material. Most honeycomb cores meet strict fire safety regulations for aviation and building interiors.
How do I join two pieces of honeycomb?
You can join them using a foaming adhesive or by simply overlapping the cells and securing them with a thin layer of epoxy.
High Strength Aluminum Honeycomb Core Supplier
Choosing the right High Strength Aluminum Honeycomb Core Supplier is about more than just finding the lowest price. It is about technical expertise, material quality, and reliable delivery. High-strength aluminum honeycomb is the key to creating products that are faster, stronger, and more efficient. From aerospace to industrial design, this “miracle material” continues to shape the future of engineering.
