In the modern manufacturing world, the demand for materials that are both lightweight and incredibly strong is higher than ever. The honeycomb aluminum core has become the gold standard for industries ranging from aerospace to interior design. This structure, inspired by nature, provides an unbeatable strength-to-weight ratio.
Whether you are looking for aluminum honeycomb core panels for construction or specialized 5052 aluminum honeycomb core for industrial use, understanding the technical specifications is key to your project’s success.
Technical Specifications and Types
When choosing the right material, the alloy type is the most important factor. The two most common types are 5052 honeycomb and 5056 honeycomb core.
1. 5052 Aluminum Honeycomb Core
The 5052 aluminum honeycomb is the industrial standard. It offers good strength and is cost-effective for most commercial applications. If you are working with a 5052 aluminum honeycomb core factory, you will find this material used in cleanrooms, partitions, and tool boards.
2. 5056 Aluminum Honeycomb Core
The 5056 aluminum honeycomb core is a high-performance version. It provides significantly higher strength than the 5052 alloy. It is the preferred choice for high-end aerospace and military applications where every gram of weight and every unit of strength matters.
Comparison Table: 5052 vs 5056 Alloy
| Feature | 5052 Aluminum Honeycomb | 5056 Aluminum Honeycomb |
|---|---|---|
| Alloy Composition | Magnesium (2.5%) | Magnesium (5.0%) |
| Strength | Standard Industrial | High Strength / Aerospace |
| Corrosion Resistance | Excellent | Superior |
| Common Use | Construction, Marine, Rail | Aerospace, Satellites, Racing |
| Availability | High | Specialized |
Detailed Product Specifications
Our aluminum 5052 honeycomb products come in various cell sizes and foil thicknesses to meet specific engineering needs.
Cell Size and Foil Thickness Options
| Cell Size (Inches) | Cell Size (mm) | Foil Thickness (mm) | Density (kg/m3) |
|---|---|---|---|
| 1/8″ | 3.2 mm | 0.04 to 0.06 | 60 – 120 |
| 1/4″ | 6.35 mm | 0.05 to 0.08 | 40 – 80 |
| 3/8″ | 9.53 mm | 0.06 to 0.10 | 30 – 60 |
| 1/2″ | 12.7 mm | 0.07 to 0.12 | 25 – 50 |
Note: Custom sizes are available upon request from our 5052 aluminum honeycomb core factory.
Specialized Honeycomb Types
Hexcel Aluminum Honeycomb Core
Hexcel aluminum honeycomb core is recognized globally for its quality. Many engineers specifically request Hexcel honeycomb core because of its history in the aviation industry. We provide compatible high-quality alternatives that meet the same rigorous mechanical standards.
Aluminum Honeycomb Mesh
The Aluminum Honeycomb Mesh is often used for airflow and shielding. Because the hexagonal cells allow air to pass through while blocking certain waves, it is perfect for:
- Electronic Shielding (EMI): Protecting sensitive equipment.
- Airflow Straighteners: Used in wind tunnels or HVAC systems.
- Ventilation Panels: For cleanrooms and server rooms.
Applications of Aluminum Honeycomb Core Panels
The versatility of aluminium honeycomb 5052 allows it to be used in numerous fields. Here are the most common applications:
- Aerospace & Defense:
- Aircraft floor panels and wings.
- Satellite structures.
- Helicopter rotor blades.
- Marine Industry:
- Hulls and bulkheads for high-speed boats.
- Interior furniture for luxury yachts.
- Transportation & Rail:
- Train floors, doors, and ceilings.
- Energy absorbers for vehicle bumpers.
- Architecture & Construction:
- Exterior wall cladding and facades.
- Interior partitions and false ceilings.
- Cleanroom wall panels.
- Industrial Equipment:
- Laser cutting beds.
- Print vacuum tables.
- Acoustic dampening panels.
Why Choose Our Honeycomb Aluminum Products?
As a leading 5052 aluminum honeycomb core factory, we focus on precision and durability. Our manufacturing process ensures that every cell is uniform, providing consistent flat surfaces for bonding.
Key Advantages:
- High Flatness: Ideal for laminating with skins like Carbon Fiber, GRP, or Aluminum sheets.
- Lightweight: Reduces the overall weight of the final product by up to 80% compared to solid materials.
- Thermal Stability: Maintains its shape and strength under varying temperature ranges.
- Customization: We offer expanded or unexpanded blocks, as well as cut-to-size slices.
Digital Specification Guide for Engineers
To help you choose the right honeycomb aluminum, please refer to the digitized data below regarding mechanical properties.
Compressive Strength Data (Typical Values)
| Cell Size (mm) | Foil Thickness (mm) | Bare Compressive Strength (MPa) |
|---|---|---|
| 3.2 | 0.04 | 4.5 – 5.0 |
| 4.8 | 0.05 | 3.0 – 3.5 |
| 6.4 | 0.06 | 2.0 – 2.4 |
| 19.0 | 0.08 | 0.5 – 0.7 |
Frequently Asked Questions (FAQ)
What is the difference between 5052 and 5056 aluminum honeycomb?
The main difference is the strength. 5056 honeycomb core has about 20% to 30% higher strength than 5052 honeycomb because of its higher magnesium content. However, 5052 is more common for general industrial use due to its lower cost.
Can I get custom cell sizes?
Yes. While standard sizes like 1/4 inch and 3/8 inch are common, our factory can produce custom cell sizes to meet specific aerodynamic or structural needs.
Is aluminum honeycomb waterproof?
Yes, aluminum 5052 honeycomb is naturally resistant to water. However, for marine environments, we recommend using a treated or coated foil to prevent long-term oxidation.
How are aluminum honeycomb core panels shipped?
They can be shipped as “unexpanded blocks” (slices that look like solid metal) to save on shipping costs, or as “expanded sheets” ready for immediate use.
What is an Aluminum Honeycomb Core?

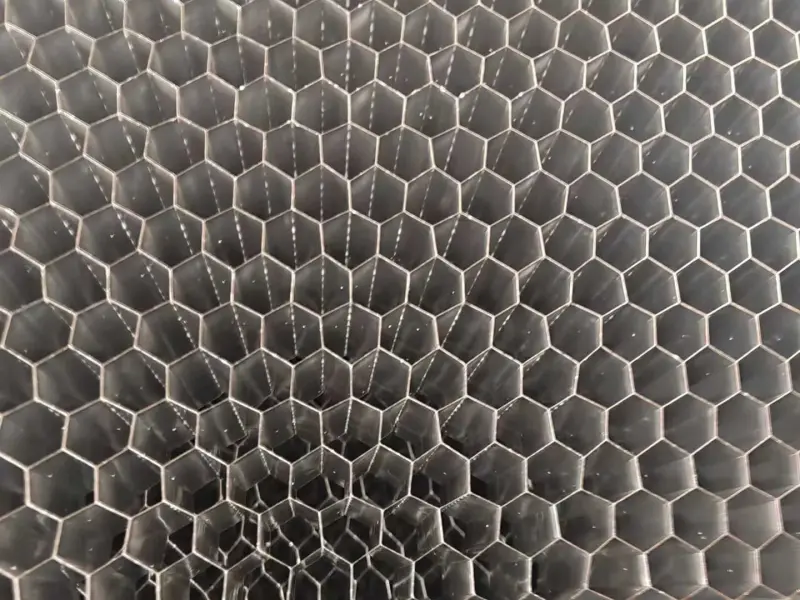

An aluminum honeycomb core is a lightweight core material made from aluminum foil. The foil is bonded together and then expanded into a hexagonal shape. This creates a “sandwich” core that is mostly air but remains extremely rigid.
Aluminium Honeycomb is favored because it is:
- Fire resistant and non-combustible.
- Corrosion resistant (especially in higher grades).
- Recyclable and eco-friendly.
- Excellent at absorbing energy.
honeycomb aluminum Factory
If you are looking for a reliable, high-strength, and lightweight material, honeycomb aluminum is the perfect solution. From the standard 5052 aluminum honeycomb core to the high-end hexcel aluminum honeycomb core equivalents, these materials offer performance that solid materials simply cannot match.
Contact our 5052 aluminum honeycomb core factory today for a quote or to learn more about how our aluminum honeycomb core panels can improve your next project.
