Are you looking for a reliable Honeycomb Core Panel Manufacturer? Lightweight, strong, and durable materials are the foundation of modern construction and transport. A honeycomb panel offers a unique combination of low weight and high structural strength, making it the preferred choice for engineers worldwide.
Whether you need a standard 4’X8 Honeycomb panels or a custom-engineered honeycomb floor Panel, finding the right honeycomb manufacturer is essential for the success of your project.
The Honeycomb Core Manufacturing Process
Understanding the honeycomb core manufacturing process helps in choosing the right material for your needs. Professional honeycomb panel manufacturers follow a strict sequence to ensure quality.
- Foil Preparation: High-quality aluminum foil is cleaned and treated.
- Adhesive Printing: Lines of structural adhesive are printed onto the foil.
- Stacking: The printed sheets are stacked and cured in a heated press to bond the adhesive lines.
- Cutting: The cured “block” is cut into slices (the thickness of your core).
- Expansion: The slices are pulled apart (expanded) to create the hexagonal honeycomb shape.
- Lamination: The honeycomb core material is bonded between two skins to create the final Aluminium honeycomb panel.
Types of Honeycomb Core Material
As global honeycomb core material suppliers, we offer various core types based on the application requirements.
| Core Type | Key Feature | Common Use |
|---|---|---|
| Aluminum Core | High heat resistance, fireproof | Aerospace, Marine, Architecture |
| Aramid (Nomex) | Extremely light, non-conductive | Racing cars, Aircraft interiors |
| Thermoplastic (PP) | Chemical resistant, waterproof | Van bodies, Packaging |
| Stainless Steel | Ultimate strength, corrosion proof | Cleanrooms, High-heat areas |
Why Use 4’X8 Honeycomb Panels?
The 4’X8 Honeycomb panels are the industry standard size. They are easy to transport, handle, and install.
Benefits of 4’X8 Panels:
- Easy Installation: Standard sizing reduces waste during on-site cutting.
- Extreme Flatness: Even at 4 feet by 8 feet, the panel does not warp or bow.
- Weight Savings: A 10 mm Aluminium honeycomb panel weighs approximately 5 kg/m², compared to 27 kg/m² for solid aluminum of the same thickness.
Specialized Honeycomb Floor Panels
One of the most demanding applications is the Honeycomb floor Panel.
Specifications for Flooring Panels
| Feature | Standard Spec | Heavy Duty Spec |
|---|---|---|
| Overall Thickness | 15 mm | 25 mm to 50 mm |
| Top Skin Thickness | 1.5 mm | 2.0 mm to 3.0 mm |
| Bottom Skin Thickness | 1.0 mm | 1.5 mm |
| Core Cell Size | 6.3 mm (1/4″) | 9.5 mm (3/8″) |
| Surface Finish | Anti-slip coating | Checkered Plate / PVC |
Key Applications of Honeycomb Panels
As a dedicated honeycomb manufacturer, we supply materials for a wide range of industries:
- Transportation: Floors, ceilings, and partitions for high-speed trains and buses.
- Marine Industry: Lightweight bulkheads and furniture for luxury yachts.
- Cleanroom Construction: Walls and ceilings for pharmaceutical and semi-conductor labs.
- Architecture: Exterior curtain walls and interior decorative cladding.
- Tooling: Lightweight vacuum tables for CNC machines.
Choosing the Right Honeycomb Core Material Suppliers
When you are searching for honeycomb panel manufacturers, it is important to look at more than just the price. High-quality honeycomb core material ensures the longevity of your project.
What to Look For:
- Certifications: Ensure the supplier has ISO or fire-safety certifications (like ASTM E84).
- Adhesive Quality: The bond between the core and the skin is the most common point of failure. Ask about the epoxy or polyurethane resins used.
- Customization: Can they provide different skin materials like carbon fiber, fiberglass, or stone veneer?
- Capacity: Can the honeycomb manufacturer handle large-scale orders for commercial projects?
Summary of Honeycomb Panel Advantages
| Advantage | Why It Matters |
|---|---|
| High Strength | Supports heavy loads with minimal deflection. |
| Low Weight | Reduces fuel consumption in transport and eases installation. |
| Thermal Insulation | The air trapped in the cells provides a natural thermal barrier. |
| Acoustic Dampening | Reduces vibration and noise transmission. |
| 100% Recyclable | Aluminum panels are environmentally friendly and sustainable. |
What is a Honeycomb Core Panel?

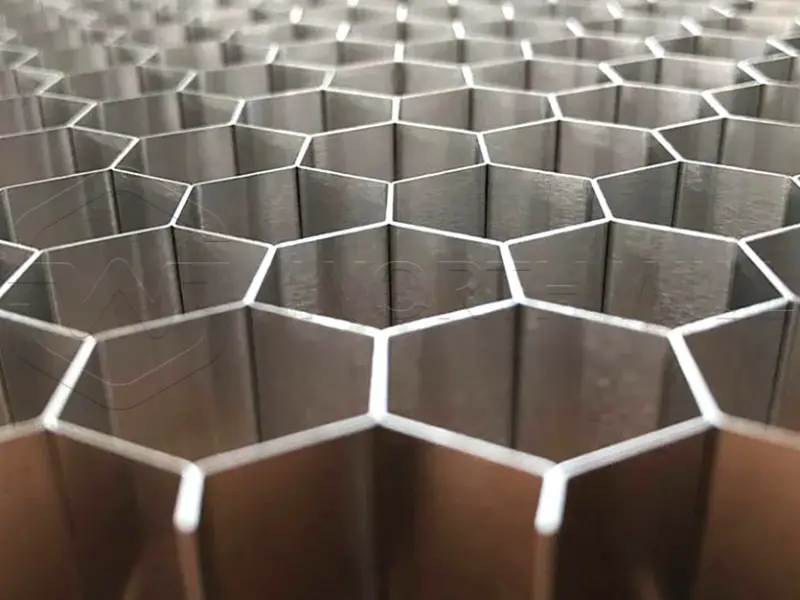

A honeycomb core panel is a sandwich structure. It consists of two thin face sheets bonded to a lightweight, hexagonal core.
As leading aluminum honeycomb core manufacturers, we specialize in creating panels that are fire-resistant, flat, and incredibly rigid.
Technical Data of Aluminum Honeycomb Core
| Property | Metric Units | Imperial Units |
|---|---|---|
| Material Alloy | 3003 / 5052 | 3003 / 5052 |
| Standard Cell Size | 6 mm to 25 mm | 1/4″ to 1″ |
| Foil Thickness | 0.04 mm to 0.1 mm | 0.0015″ to 0.004″ |
| Density | 25 to 150 kg/m³ | 1.5 to 9.3 lb/ft³ |

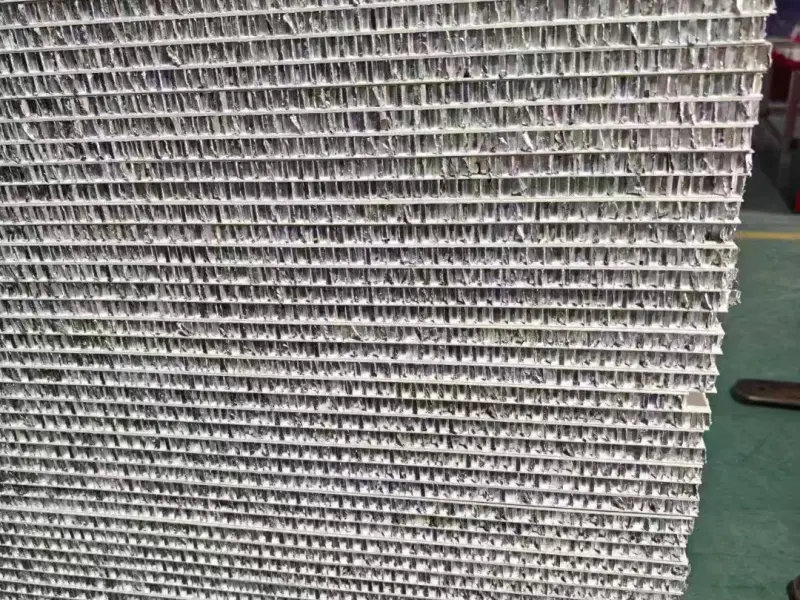

Aluminium honeycomb panel for sale
Whether you are looking for a Honeycomb Core Panel Manufacturer for a one-time project or a long-term honeycomb core material partner, understanding the specifications is key. From the honeycomb core manufacturing process to the final delivery of 4’X8 Honeycomb panels, quality control at every step ensures a superior product.
If you need high-performance, lightweight solutions, the Aluminium honeycomb panel remains the gold standard in the industry. Contact a professional honeycomb manufacturer today to get the exact specifications and pricing for your next big project.
