Which is better: aluminium sheet or aluminium composite panel? This is in construction, signage, and manufacturing industries. Both materials have unique advantages, and the best choice depends on your specific project requirements, budget, and performance needs.
What are Aluminium Sheets and Aluminium Composite Panels?
Aluminium Sheet
- Solid aluminium metal in various thicknesses
- Available in different alloys and tempers
- Used for industrial, construction, and manufacturing applications

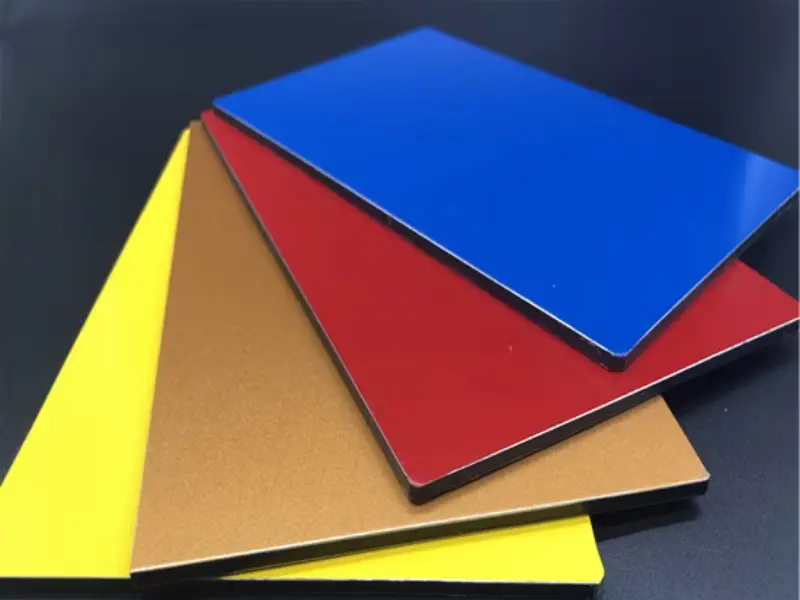

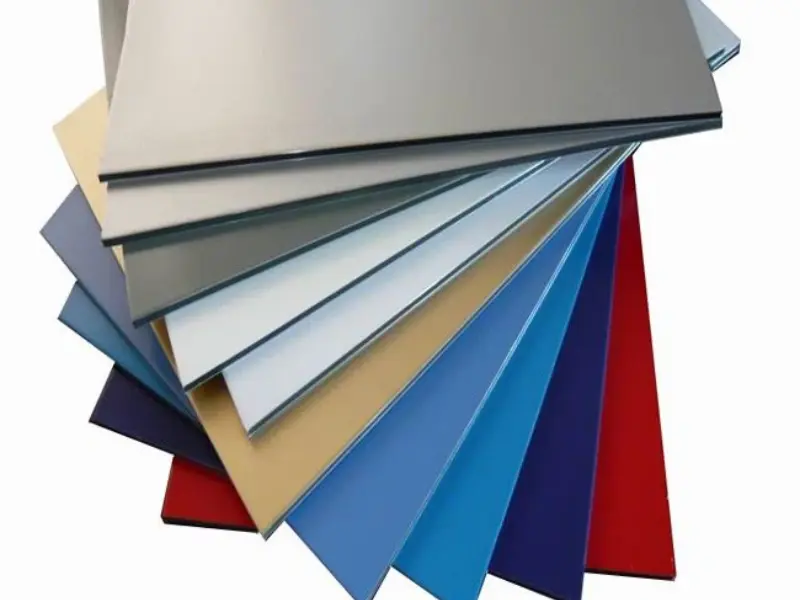

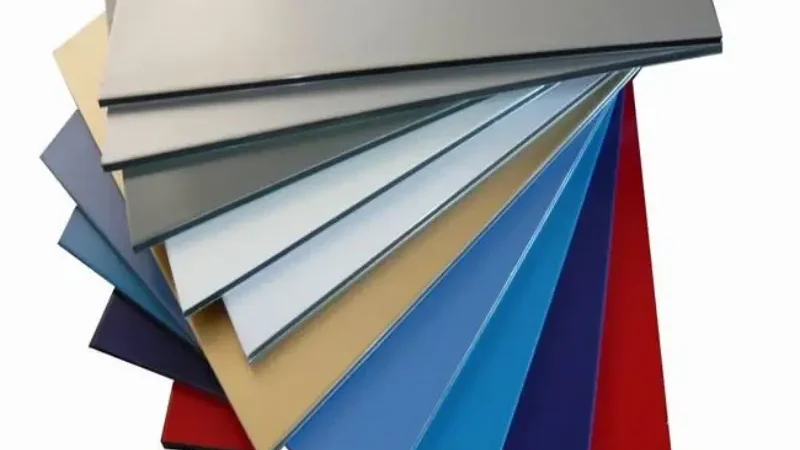

Aluminium Composite Panel (ACP)
- Two thin aluminium sheets bonded to a non-aluminium core
- Lightweight composite structure
- Used for cladding, signage, and architectural applications
Key Differences at a Glance
| Feature | Aluminium Sheet | Aluminium Composite Panel |
|---|---|---|
| Construction | Solid metal | Composite sandwich |
| Core Material | None | Polyethylene or mineral core |
| Weight | Heavy | Lightweight |
| Standard Thickness | 0.5-6 mm | 3-6 mm |
Performance Comparison
| Property | Aluminium Sheet | Aluminium Composite Panel | Winner |
|---|---|---|---|
| Strength | High | Medium | Aluminium Sheet |
| Flatness | Good | Excellent | ACP |
| Durability | 20+ years | 15-20 years | Aluminium Sheet |
| Impact Resistance | High | Medium | Aluminium Sheet |
| Thermal Expansion | High | Low | ACP |
Cost Analysis
| Cost Factor | Aluminium Sheet | Aluminium Composite Panel |
|---|---|---|
| Material Cost | $15-40/m² | $20-60/m² |
| Installation Cost | High | Medium |
| Fabrication Cost | High | Low |
| Long-term Maintenance | Low | Medium |
Applications and Suitability
Choose Aluminium Sheet for:
- Structural components
- Industrial machinery
- Heavy-duty applications
- Marine environments
- High-temperature applications
Choose Aluminium Composite Panel for:
- Building facades
- Signage and displays
- Interior decoration
- Retail spaces
- Lightweight structures
Installation and Fabrication
| Aspect | Aluminium Sheet | Aluminium Composite Panel |
|---|---|---|
| Cutting | Requires power tools | Easy with basic tools |
| Bending | Requires special equipment | Easy to bend and form |
| Installation | Skilled labor needed | Easier installation |
| Weight Handling | Heavy equipment needed | Manual handling possible |
Aesthetic Options
Aluminium Sheet Finishes:
- Mill finish
- Anodized coatings
- Painted surfaces
- Brushed or polished
ACP Finishes:
- PVDF coatings
- Wood and stone effects
- Metallic colors
- Custom digital prints
Environmental Considerations
| Factor | Aluminium Sheet | Aluminium Composite Panel |
|---|---|---|
| Recyclability | 100% recyclable | Separated recycling required |
| Production Energy | High | Lower |
| Sustainability | Excellent | Good |
| Lifecycle | Very long | Long |
Maintenance and Durability
Aluminium Sheet Maintenance:
- Resistant to corrosion
- Can be repainted if needed
- Long service life
- Minimal maintenance
ACP Maintenance:
- Easy to clean
- May require panel replacement if damaged
- Coating protection needed
- Regular inspection recommended
Safety and Fire Performance
Fire Safety:
- Aluminium Sheet: Non-combustible
- ACP: Varies by core material
- Polyethylene core: Poor fire performance
- Mineral core: Good fire performance
Structural Safety:
- Aluminium Sheet: High strength-to-weight ratio
- ACP: Good rigidity but lower strength
FAQ
Q1: Which is more cost-effective?
A: Aluminium sheet has lower material cost but higher installation cost. ACP offers better overall value for architectural applications.
Q2: Can both be used outdoors?
A: Yes, but aluminium sheet performs better in harsh environments, while ACP is better for moderate climates.
Q3: Which is better for signage?
A: ACP is generally preferred for signage due to its flatness and ease of fabrication.
Q4: How do they compare for weight?
A: ACP is significantly lighter, making it easier to handle and install.
Q5: Which has better insulation properties?
A: ACP provides better thermal and acoustic insulation due to its composite structure.
Q6: Can ACP be used for structural applications?
A: No, ACP is not suitable for structural applications – use aluminium sheet instead.
Industry Preferences
Construction Industry:
- Structural work: Aluminium Sheet
- Cladding and facades: ACP
- Roofing: Aluminium Sheet
- Interior walls: ACP
Signage Industry:
- Large signs: ACP
- Industrial labels: Aluminium Sheet
- Decorative signs: ACP
- Outdoor signs: Both suitable
Future Trends
Aluminium Sheet Developments:
- Thinner, stronger alloys
- Improved coatings
- Sustainable production methods
- New forming technologies
ACP Innovations:
- Fire-resistant cores
- Enhanced sustainability
- Improved recycling methods
- New surface technologies
Which is Better: Aluminium Sheet or Aluminium Composite Panel?
Choose Aluminium Sheet when you need:
- Structural strength
- High durability
- Extreme weather resistance
- Industrial applications
Choose Aluminium Composite Panel when you need:
- Lightweight solution
- Excellent flatness
- Easy fabrication
- Architectural aesthetics
Both materials have their place in modern construction and manufacturing. Consider your project requirements, budget constraints, and performance expectations when making your selection.
