Aluminum Honeycomb Wall Panels/Lightweight & Durable Cladding

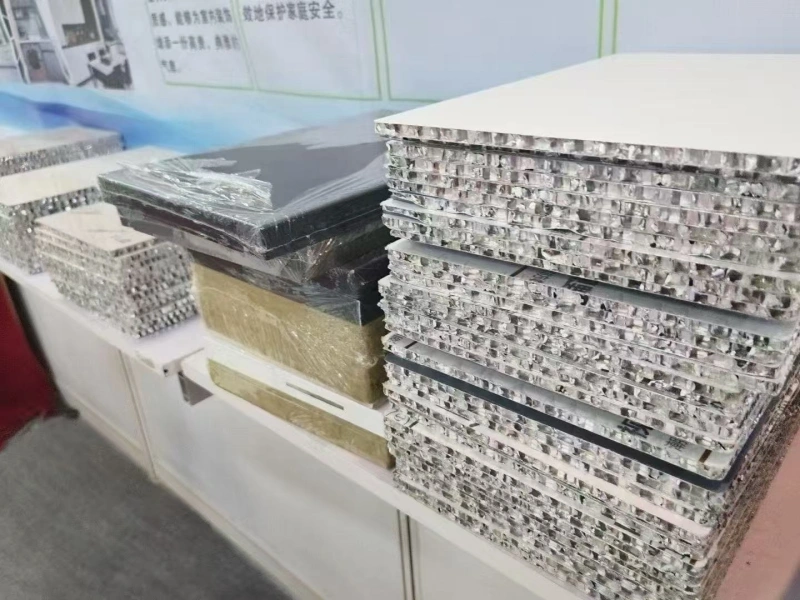

Aluminum honeycomb wall panels are high-performance architectural cladding materials that combine aerospace technology with modern construction needs. These panels feature a unique sandwich structure with two aluminum face sheets bonded to an aluminum honeycomb core, delivering exceptional strength while remaining remarkably lightweight. Perfect for both interior and exterior applications, they offer superior durability and design flexibility compared to traditional wall materials.

Product Specifications

Parameter	Specification	Custom Options
Product Name	Aluminum Honeycomb Wall Panel	Custom naming available
Width	1220mm (standard)	600-1500mm
Length	2440-3200mm	Up to 6000mm
Thickness	4-50mm	Special thickness on request
Surface Finish	Film laminated, Roller coated	PVDF, Anodized, Wood grain
Core Material	Aluminum honeycomb	Different cell sizes
Panel Weight	5-7kg/m² (6mm thickness)	Varies by thickness

7 Key Advantages of Our Panels

1. Large Panel Size with Perfect Flatness

Seamless appearance for modern aesthetics
No visible joints or warping
Maximum panel size up to 3200×1500mm

2. Ultra-Lightweight Construction

80% lighter than solid aluminum panels
Reduces structural support requirements
Easy to handle and install

3. Exceptional Strength

High impact resistance
Withstands wind loads up to 3000Pa
Excellent load-bearing capacity

4. Customization Options

50+ standard colors available
Custom sizes and shapes
Special finishes (mirror, brushed, etc.)

5. Easy Installation

Dry construction system
Hidden fastener design
30% faster installation than traditional materials

6. Box-Type Structure

Enhanced rigidity
Improved thermal/sound insulation
Better resistance to deformation

7. Multi-Purpose Applications

Suitable for interior and exterior use
Adaptable to various design requirements
Compatible with different mounting systems

Popular Applications

Architectural Cladding

Office building facades
Shopping mall interiors
Hotel lobbies and corridors
Metro station walls

Specialty Applications

Cleanroom partitions
Exhibition stand backdrops
Elevator interior panels
Signage and display systems

Technical Performance Data

Property	Value	Testing Standard
Compressive Strength	≥2.5MPa	GB/T 1453
Flexural Strength	≥60MPa	GB/T 1449
Thermal Conductivity	0.5W/(m·K)	GB/T 10294
Sound Insulation	26dB (10mm panel)	GB/T 19889
Fire Rating	Class A (non-combustible)	GB 8624

Installation Guide

Recommended Systems

Standing Seam (for exterior walls)
Hidden Clip (for interior walls)
Glue Fixing (for small panels)

Installation Tips

Allow 5mm expansion gap between panels
Use neoprene spacers for thermal movement
Clean surface before adhesive application
Follow panel numbering sequence

Why Choose Our Honeycomb Wall Panels?

Quality Assurance

ISO 9001 certified production
SGS tested material certificates
10-year quality guarantee

Competitive Advantages

15+ years manufacturing experience
In-house R&D team for custom solutions
One-stop service from design to installation

Global Supply

Export to 30+ countries
Sea/air shipping options
Professional export packaging

Types of Honeycomb Wall Panels

We offer a variety of aluminum honeycomb wall panels:

Standard aluminum honeycomb wall panels
Fire-rated aluminum honeycomb panels
Anodized surface honeycomb panels
Brushed, mirror, and wood grain finishes

Aluminum Honeycomb Panel Thickness & Price Factors

The price of aluminum honeycomb wall panels depends on several factors:

Panel thickness (4mm to 50mm)
Core density and material quality
Surface treatment (film, paint, texture)
Customization and volume of order

Frequently Asked Questions

Q: How does aluminum honeycomb compare to solid aluminum panels?

A: Our honeycomb panels are 80% lighter while maintaining 90% of the strength of solid panels.

Q: Can these panels be used in coastal areas?

A: Yes, with proper PVDF coating, they resist salt spray corrosion effectively.

Q: What’s the lead time for custom orders?

A: Typically 15-20 days after design confirmation.

Q: Do you provide installation support?

A: Yes, we offer technical drawings and video guidance for installation.

Ordering Information

Minimum Order Quantity: 100m² (samples available)
Payment Terms: T/T, L/C
Delivery Time: 7-10 days for standard sizes

Contact Us Today for a free project consultation and quote!

Packaging & Delivery

All aluminum honeycomb wall panels are securely packed with protective film and wooden cases to ensure safe delivery. Bulk orders and OEM designs are available for international shipping.

Why Choose Us?

Over 10 years of manufacturing experience
Advanced production equipment
Strict quality control and testing
Competitive factory pricing
Efficient customer support and customization service
