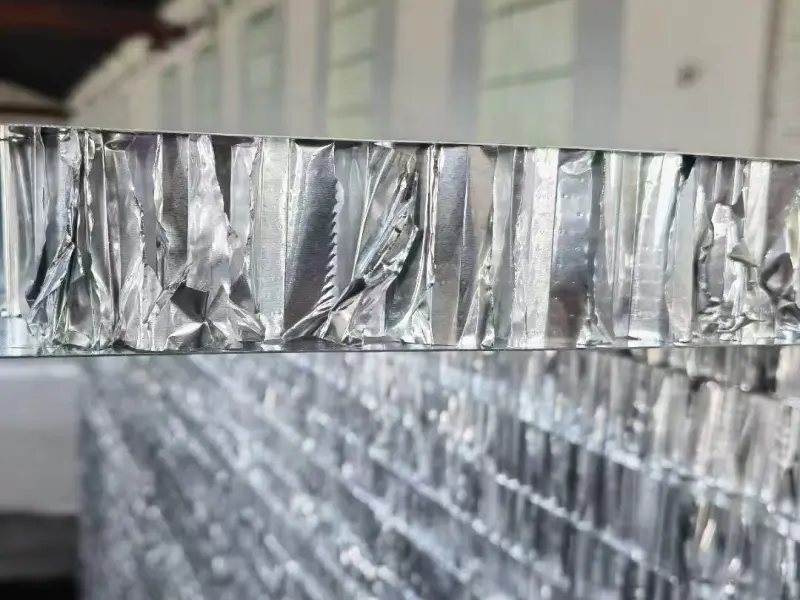

An aluminium honeycomb core panel is a lightweight composite panel made by bonding thin aluminum face sheets to an aluminum honeycomb core structure. This design creates a strong but lightweight material with excellent flatness, durability, and load-bearing capacity.
It is widely used in:
- Architecture and construction
- Transportation industries
- Interior decoration
- Industrial applications
The honeycomb structure improves rigidity while keeping the panel weight low.
Why Choose Aluminum Honeycomb Panels?
Aluminum honeycomb panels offer many performance advantages over solid metal sheets and traditional composite panels.
Key Benefits:
- Extremely lightweight
- High bending strength
- Excellent corrosion resistance
- Fire-resistant options available
- Long service life
- Eco-friendly aluminum material
These benefits make aluminum honeycomb core panels ideal for large surface applications.
Standard Sizes – 4×8 Aluminum Honeycomb Panels
The most popular size in the global market is 4′ x 8′ aluminum honeycomb panels (1220 x 2440 mm).
| Panel Size | Metric Size (mm) | Common Use |
|---|---|---|
| 4′ x 8′ | 1220 x 2440 | Wall cladding |
| 4′ x 10′ | 1220 x 3050 | Facades |
| 5′ x 10′ | 1500 x 3050 | Large surfaces |
| Custom | As required | Special projects |
Panel Thickness Options
Different thicknesses are available to meet load and insulation needs.
| Total Thickness | Face Sheet Thickness | Weight (kg/m² approx.) |
|---|---|---|
| 10 mm | 0.7 mm | 5.5 |
| 15 mm | 0.8 mm | 6.8 |
| 20 mm | 1.0 mm | 8.0 |
| 25 mm | 1.2 mm | 9.5 |
Aluminum Honeycomb Core Structure

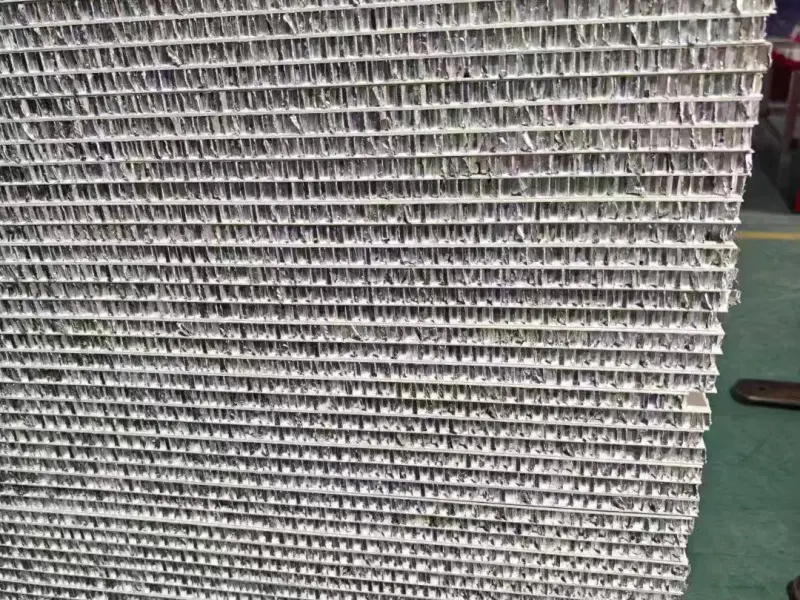

The honeycomb core is made from expanded aluminum foil bonded into hexagonal cells.
Common Core Specifications:
| Core Cell Size | Foil Thickness | Density |
|---|---|---|
| 6 mm | 0.04 mm | Low |
| 8 mm | 0.05 mm | Medium |
| 10 mm | 0.06 mm | High |
| 12 mm | 0.08 mm | Heavy duty |
Smaller cells provide higher strength and better load performance.
Surface Finishes Available
Aluminium honeycomb panels can be finished with:
- PVDF coating for outdoor use
- Polyester coating for interiors
- Anodized aluminum surface
- Wood grain or stone pattern
- Brushed metallic finish
Common Types of Aluminum Honeycomb Panels
| Type | Coating | Typical Application |
|---|---|---|
| Interior honeycomb panel | PE coating | Office walls |
| Exterior honeycomb panel | PVDF coating | Building facades |
| Fire-rated panel | FR core | Public buildings |
| Decorative panel | Anodized or patterned | Hotels & malls |
Applications of Aluminium Honeycomb Core Panels
Used widely in modern projects:
- Exterior wall cladding
- Aluminum honeycomb ceiling panels
- Curtain wall systems
- Elevator interiors
- Airport terminals
- Hospitals and schools
- Train and ship interiors
- Exhibition halls
Aluminium Honeycomb Panel Price Factors
The price of aluminium honeycomb panels depends on:
- Panel thickness
- Aluminum skin thickness
- Core density
- Coating type
- Panel size (4×8 or custom)
- Order quantity
Typical Price Influence Table
| Factor | Effect on Price |
|---|---|
| Thicker panels | Higher cost |
| PVDF coating | Medium increase |
| High density core | Higher strength & price |
| Large size | Slight increase |
Installation Advantages
Aluminum honeycomb panels are easy to install:
- Lightweight reduces structural load
- Can be prefabricated
- Hidden fixing systems available
- Flat surface ensures clean appearance
Why Source Aluminum Honeycomb Panels from China?
China is one of the leading producers of aluminum honeycomb panels due to:
- Advanced production lines
- Large capacity supply
- Competitive pricing
- Custom manufacturing options
Many buyers choose WORTHWILL ALUMINUM for stable quality, professional service, and factory-direct supply.
Frequently Asked Questions
Is aluminum honeycomb panel stronger than ACP?
Yes. Honeycomb panels have higher rigidity and better load resistance compared to standard aluminum composite panels.
Are honeycomb panels fire resistant?
Fire-rated cores and aluminum skins provide excellent fire performance.
Can panels be used outdoors?
Yes. PVDF-coated panels are suitable for long-term exterior use.
What is the lifespan of aluminum honeycomb panels?
Typically 20–30 years depending on environment and coating.
aluminium honeycomb panel for sale
The aluminium honeycomb core panel is a high-performance building material combining lightweight design with exceptional strength. Available in popular 4×8 aluminum honeycomb panels, various thicknesses, and multiple surface finishes, it is ideal for modern architectural and industrial applications.
With strong durability, fire resistance, and design flexibility, aluminum honeycomb panels are becoming the preferred choice for high-end construction worldwide.
