WORTHWILL ALUMINUM proudly offers premium 5052-H32 aluminum honeycomb panels, engineered for strength, durability, and lightweight performance. These panels are ideal for various applications, including aerospace, marine, transportation, and architectural projects.
Product Overview

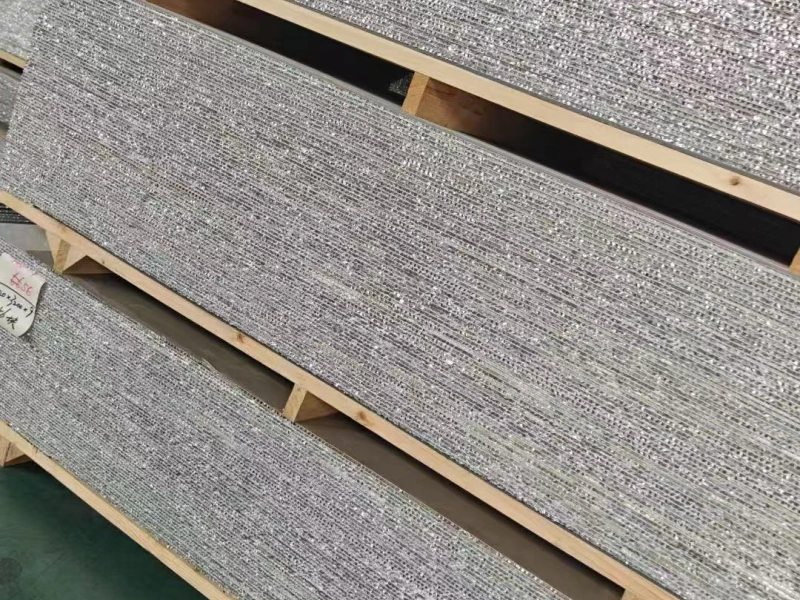

Our 5052-H32 aluminum honeycomb panels consist of:
-
Face Sheets: 5052-H32 aluminum alloy with a mill finish and PVC masking.
-

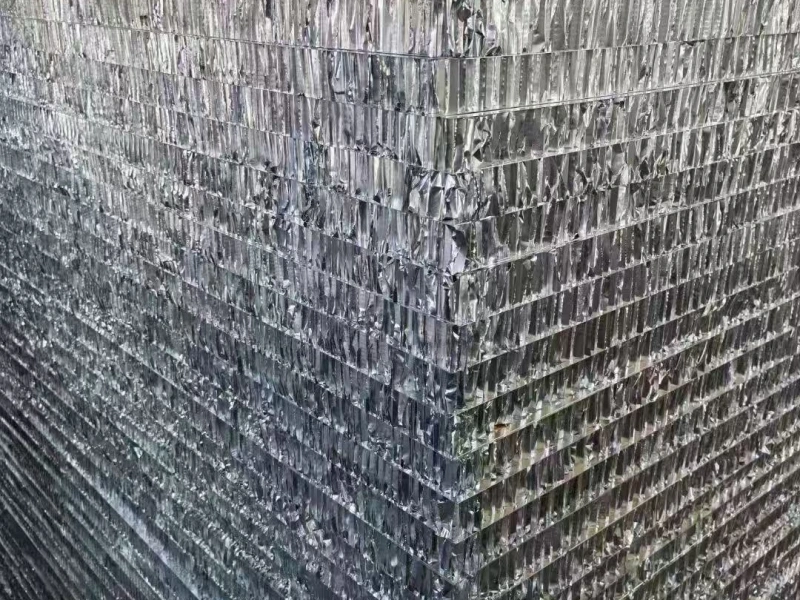

Core Material: 3003 aluminum alloy honeycomb with a 3/8″ cell size and a density of 3.6 lbs/ft³.
-
Bonding Agent: Commercial-grade epoxy adhesive.
These panels offer excellent corrosion resistance, high strength-to-weight ratio, and superior flatness.
Specifications
| Parameter | Details |
|---|---|
| Alloy (Face Sheets) | 5052-H32 Aluminum |
| Core Material | 3003 Aluminum Honeycomb |
| Cell Size | 3/8 inch (9.5 mm) |
| Core Density | 3.6 lbs/ft³ (57.7 kg/m³) |
| Panel Thickness | 0.250″ to 0.625″ (6.35 mm to 15.88 mm) |
| Panel Dimensions | 48″ x 120″ (1219 mm x 3048 mm) |
| Surface Finish | Mill Finish with PVC Masking |
| Adhesive | Commercial-grade Epoxy |
| Lap Shear Strength | 900 psi at 73°F (23°C); 1205 psi at -40°F (-40°C) |
| Flatness Tolerance | ±0.008″ (±0.2 mm) |
| Thickness Tolerance | ±0.015″ (±0.38 mm) |
| Length/Width Tolerance | ±0.125″ (±3.18 mm) |
Types of 5052-H32 Aluminum Honeycomb Panels
We offer various types of aluminum honeycomb panels to meet diverse application needs:
-
Standard Panels: Ideal for general structural applications.
-
Fire-Rated Panels: Designed to meet specific fire safety standards.
-
Anodized Panels: Enhanced surface protection and aesthetic appeal.
-
Custom Panels: Tailored to specific dimensions, finishes, and core configurations.
WORTHWILL ALUMINUM: 5052-H32 Aluminum Honeycomb Panels
In modern construction, transportation, and industrial design, the demand for materials that offer an exceptional balance of strength, lightness, and durability is paramount. The 5052-H32 aluminum honeycomb panel stands out as a leading solution, engineered to meet these rigorous requirements. At WORTHWILL ALUMINUM, we specialize in manufacturing high-quality aluminum honeycomb panels that provide superior performance for a diverse range of applications.
These innovative panels combine the remarkable properties of aluminum with a unique honeycomb core structure, resulting in a product that is incredibly rigid yet remarkably lightweight. If you’re seeking an advanced material for your next project, our 5052-H32 aluminum honeycomb panels offer the perfect blend of engineering excellence and practical benefits.
What is a 5052-H32 Aluminum Honeycomb Panel?

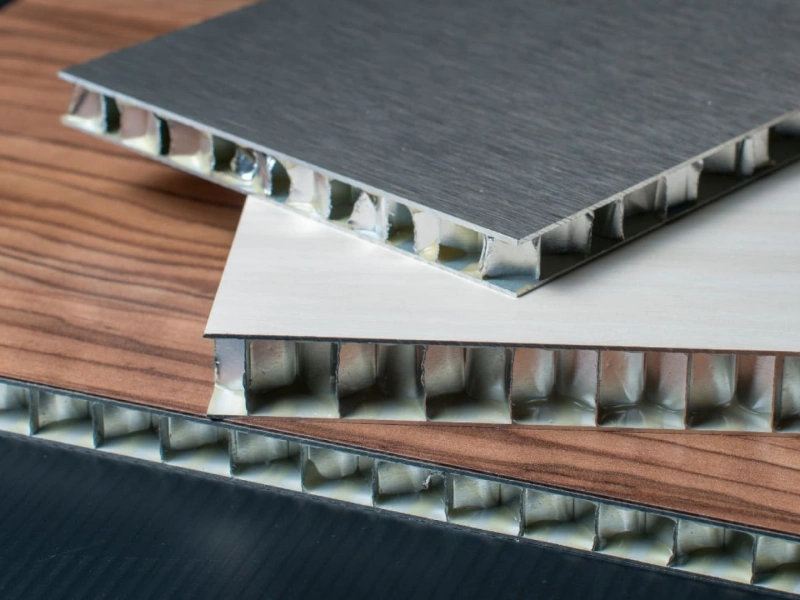

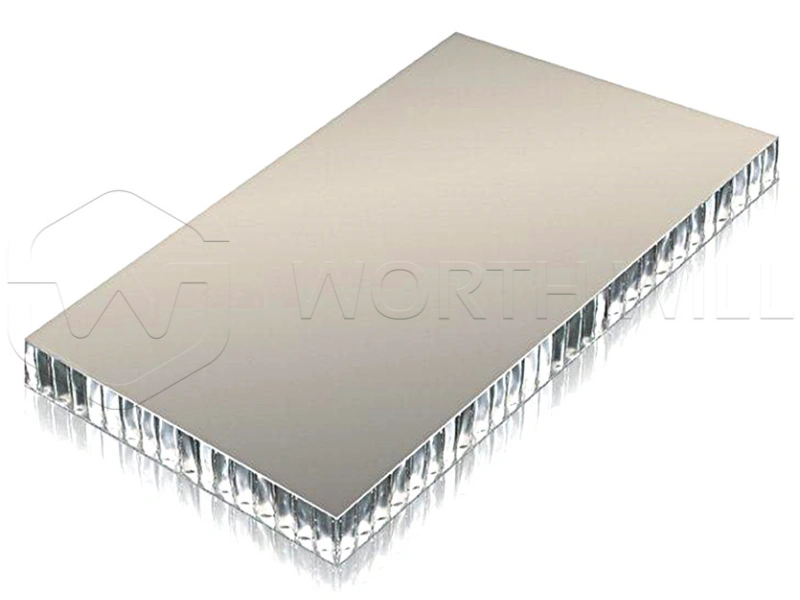

An aluminum honeycomb panel is a type of sandwich composite material. It consists of two outer aluminum sheets (called skins) bonded to a core of aluminum formed into a honeycomb structure. The magic lies in this hexagonal cellular core, which mimics the highly efficient design found in nature, providing immense strength and rigidity with minimal material.
The “5052-H32” designation is crucial. 5052 aluminum alloy is highly regarded for its excellent corrosion resistance, especially in marine environments, and its good formability. The “H32” temper indicates that the alloy has been strain-hardened and then stabilized, giving it improved strength and resistance to stress corrosion cracking, making it a very reliable choice for demanding applications.
When used as the skin material for honeycomb panels, 5052-H32 aluminum ensures that the entire panel benefits from these enhanced properties. This makes it an ideal material for applications where lightweight strength, flatness, and resistance to environmental factors are critical. WORTHWILL ALUMINUM leverages these material advantages to deliver top-tier lightweight panels.
Key Specifications of Our Aluminum Honeycomb Panels
Our 5052-H32 aluminum honeycomb panels are manufactured to precise standards, ensuring consistent quality and performance. Below are the typical specifications you can expect from our products:
| Feature | Specification |
|---|---|
| Skin Material | 5052-H32 Aluminum Alloy (standard), other alloys available on request |
| Core Material | 3003 or 5052 Aluminum Honeycomb Core |
| Panel Thickness | 6mm to 300mm (customizable) |
| Skin Thickness | 0.5mm to 3.0mm (customizable) |
| Standard Width | Up to 2000mm (78.7 inches) |
| Standard Length | Up to 6000mm (236 inches), longer lengths possible |
| Surface Finish | Mill Finish, PVDF Coating, PE Coating, Anodized, Powder Coated, Wood Grain, Stone Grain, Custom Colors |
| Adhesive | High-strength two-component epoxy or polyurethane adhesive |
| Fire Rating | Class A (Non-combustible) |
| Density | Extremely low, typically 3-10 kg/m² depending on thickness |
These specifications highlight the versatility and high performance of our aluminum honeycomb panels, making them suitable for a wide array of demanding projects.
Advantages of 5052-H32 Aluminum Honeycomb Panels
Choosing 5052-H32 aluminum honeycomb panels for your project offers a multitude of benefits that traditional solid materials often cannot match:
- Exceptional Strength-to-Weight Ratio: This is the primary advantage. The honeycomb structure provides outstanding rigidity and bending strength at a fraction of the weight of solid aluminum, steel, or even plywood. This means easier handling, reduced structural load, and lower transportation costs.
- Superior Flatness and Rigidity: The cellular core ensures excellent resistance to warping and deformation, resulting in incredibly flat and stable panels. This is crucial for aesthetic applications like curtain walls.
- Excellent Fire Resistance: Being composed entirely of aluminum (a non-combustible material) and specialized adhesives, these panels typically achieve a Class A fire rating, enhancing building safety.
- High Corrosion Resistance: The use of 5052 aluminum alloy provides superior resistance to corrosion, particularly in saltwater and humid environments, extending the lifespan of the panels in outdoor or marine applications.
- Sound Insulation Properties: The trapped air within the honeycomb cells helps to dampen sound, offering good acoustic insulation, which is beneficial in architectural applications.
- Thermal Insulation: The isolated air cells also contribute to the panel’s thermal insulation properties, helping to regulate temperature and improve energy efficiency in buildings.
- Environmental Friendliness: Aluminum is 100% recyclable, making aluminum honeycomb panels an environmentally sustainable choice.
- Design Flexibility: Panels can be easily cut, formed, and finished in a wide variety of colors and textures, allowing for immense architectural and design freedom.
These combined advantages make our aluminum honeycomb panels a smart and sustainable choice for innovative engineering and design.
Types of Aluminum Honeycomb Panels
While the 5052-H32 aluminum honeycomb panel is a highly versatile standard, variations exist to cater to specific project needs. At WORTHWILL ALUMINUM, we understand these nuances and can guide you to the best solution. The main types can be differentiated by:
- Core Material: While aluminum is standard, the cell size and foil thickness of the honeycomb core can vary, influencing strength and weight.
- Skin Material: Although 5052-H32 aluminum is our premium offering for its corrosion resistance and strength, other aluminum alloys (like 3003) might be used for less demanding applications or specific cost requirements. Additionally, panels can be manufactured with skins of other materials like stainless steel, fiberglass, or even natural stone veneers, bonded to an aluminum honeycomb core for different aesthetics or properties.
- Surface Finishes: The surface treatment plays a significant role in aesthetics and durability.
- PVDF (Polyvinylidene Fluoride) Coated Panels: Highly durable, offering excellent weather resistance, UV protection, and a wide range of colors, ideal for exterior applications.
- PE (Polyester) Coated Panels: A more economical option for interior or less exposed exterior applications, providing good color retention.
- Anodized Panels: Offers a translucent, metallic finish with enhanced hardness and corrosion resistance.
- Powder Coated Panels: Provides a wide array of custom colors and textures with good durability.
- Specialty Finishes: Including wood grain, stone grain, and other decorative patterns to mimic natural materials with the benefits of aluminum.
- Adhesives: The bonding agent between the skins and the core is crucial. High-strength epoxy or polyurethane adhesives are commonly used, chosen for their durability, environmental resistance, and structural integrity.
Understanding these types allows for tailored solutions, ensuring the perfect honeycomb composite panel for every unique demand.
Applications of 5052-H32 Aluminum Honeycomb Panels
The unique combination of properties makes 5052-H32 aluminum honeycomb panels highly sought after across numerous industries. Their versatility and performance benefits make them ideal for a wide range of uses:
- Architecture & Building Construction:
- Curtain Walls and Facades: Providing lightweight, flat, and aesthetically pleasing exterior cladding for modern buildings.
- Roofing Systems: Offering durable, lightweight, and weather-resistant roofing solutions.

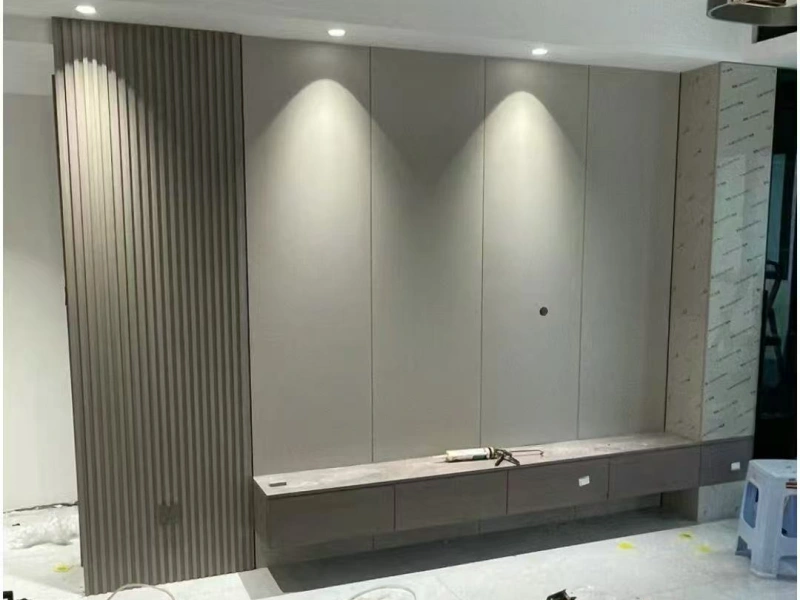

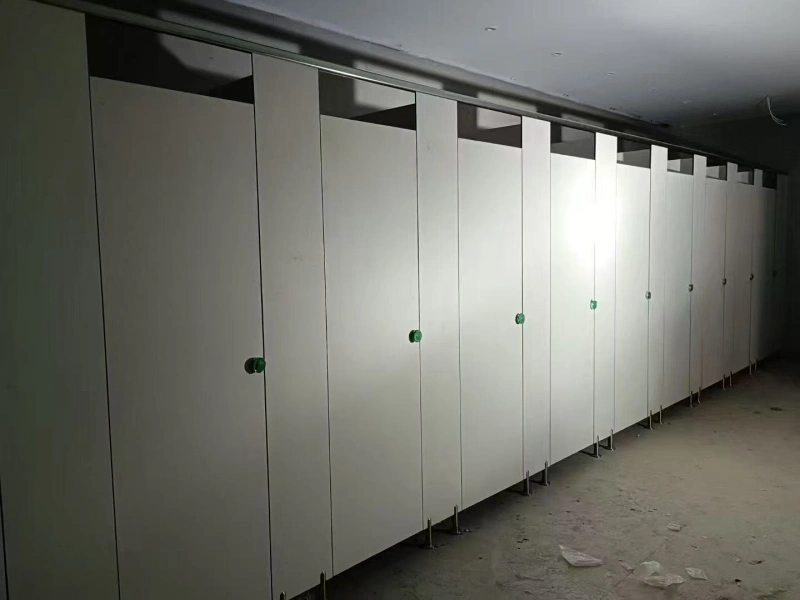

- Interior Wall Panels & Partitions: Creating sleek, modern interior surfaces with excellent sound insulation.
- Ceilings: Lightweight and easy to install for suspended ceiling systems.
- Cleanrooms: Due to their non-shedding and easy-to-clean surfaces.
- Canopies and Awnings: Durable and resistant to environmental elements.
- Transportation:
- Aircraft Interiors & Components: Used in floors, galleys, luggage bins, and bulkheads for weight reduction and increased fuel efficiency.
- High-Speed Trains & Subway Cars: For floors, walls, and interior panels, reducing weight and enhancing structural integrity.
- Marine Vessels (Boats & Yachts): For decks, bulkheads, and interior components due to their corrosion resistance and lightweight properties.
- Automotive Industry: In specific vehicle parts where weight reduction is crucial.
- Industrial & General Applications:
- Cleanroom Walls & Ceilings: Providing smooth, non-contaminating surfaces.

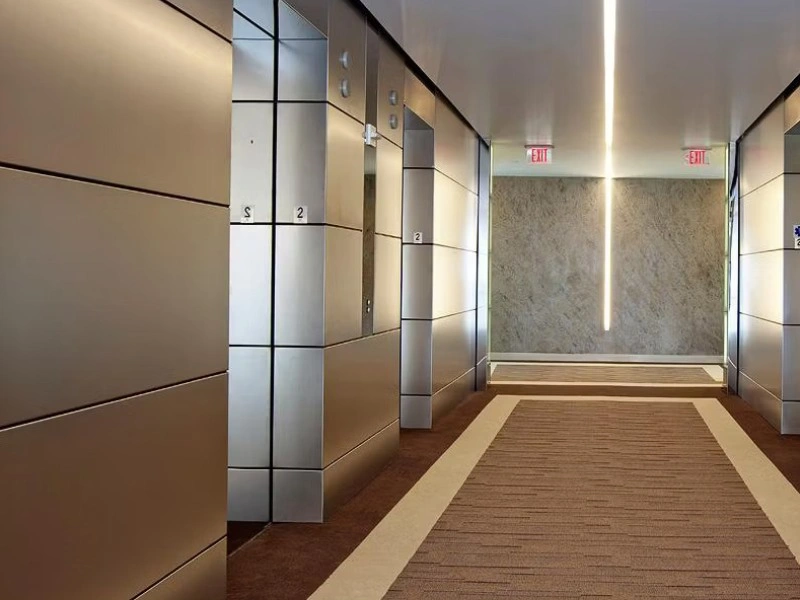

- Elevator Interiors: Durable and customizable for aesthetic appeal.
- Machine Enclosures: For sound dampening and structural protection.
- Exhibition Booths & Displays: Lightweight and easy to assemble/disassemble.
- Furniture Components: For lightweight yet strong tabletops and cabinet doors.
- Signage & Billboards: Offering large, flat, and weather-resistant surfaces for advertising.
These applications highlight the adaptability of aluminum honeycomb panels, making them a smart choice for diverse engineering and design challenges.
Why Choose WORTHWILL ALUMINUM for Your Honeycomb Panels?
As dedicated aluminum honeycomb panel manufacturers, WORTHWILL ALUMINUM is committed to delivering excellence. Our expertise, state-of-the-art manufacturing processes, and rigorous quality control ensure that every panel meets the highest industry standards. When you partner with us, you benefit from:
- Premium Quality Materials: We exclusively use high-grade 5052-H32 aluminum and other superior components, guaranteeing the longevity and performance of our panels.
- Precision Manufacturing: Our advanced production lines ensure precise dimensions, superior flatness, and consistent bonding strength.
- Customization Capabilities: We offer extensive customization in terms of panel thickness, skin thickness, dimensions, and surface finishes to meet your specific project needs.
- Technical Support: Our experienced team provides expert advice and support, from material selection to application guidance.
- Reliable Supply: With efficient production capacity, we ensure timely delivery for projects of all scales.
At WORTHWILL ALUMINUM, we pride ourselves on being more than just suppliers; we are your trusted partners in innovation, providing the advanced materials that bring your most ambitious projects to life.
Conclusion
The 5052-H32 aluminum honeycomb panel represents a pinnacle in lightweight, high-strength material science. Its exceptional properties make it an indispensable choice for architectural, transportation, and industrial applications where performance, aesthetics, and durability are paramount. At WORTHWILL ALUMINUM, we are proud to be leading manufacturers of these superior aluminum composite panels, offering a product that delivers unparalleled flatness, rigidity, fire resistance, and corrosion protection.
Choose WORTHWILL ALUMINUM for your next project and experience the difference that premium quality and expert manufacturing make. Let our aluminum honeycomb panels provide the strong, lightweight, and sustainable foundation your designs deserve.
